HXGN-12 BOX-TYPE FIXED AC METAL-ENCLOSED SWITCHGEAR

HXGN-12 Box-type Fixed AC Metal-enclosed Switchgear

Box-type fixed switchgear for 12 kV ring and terminal distribution

Rated at 12 kV and 50 Hz for three-phase AC ring networks, terminal distribution networks, and industrial electrical equipment, providing power reception and distribution.

Rated voltage

12 kV

Rated frequency

50 Hz

Rated current

630 A

Thermal withstand current

20 kA, 4 s

Applications

  • Three-phase AC ring networks
  • Terminal distribution networks
  • Industrial electrical equipment
  • Prefabricated substations

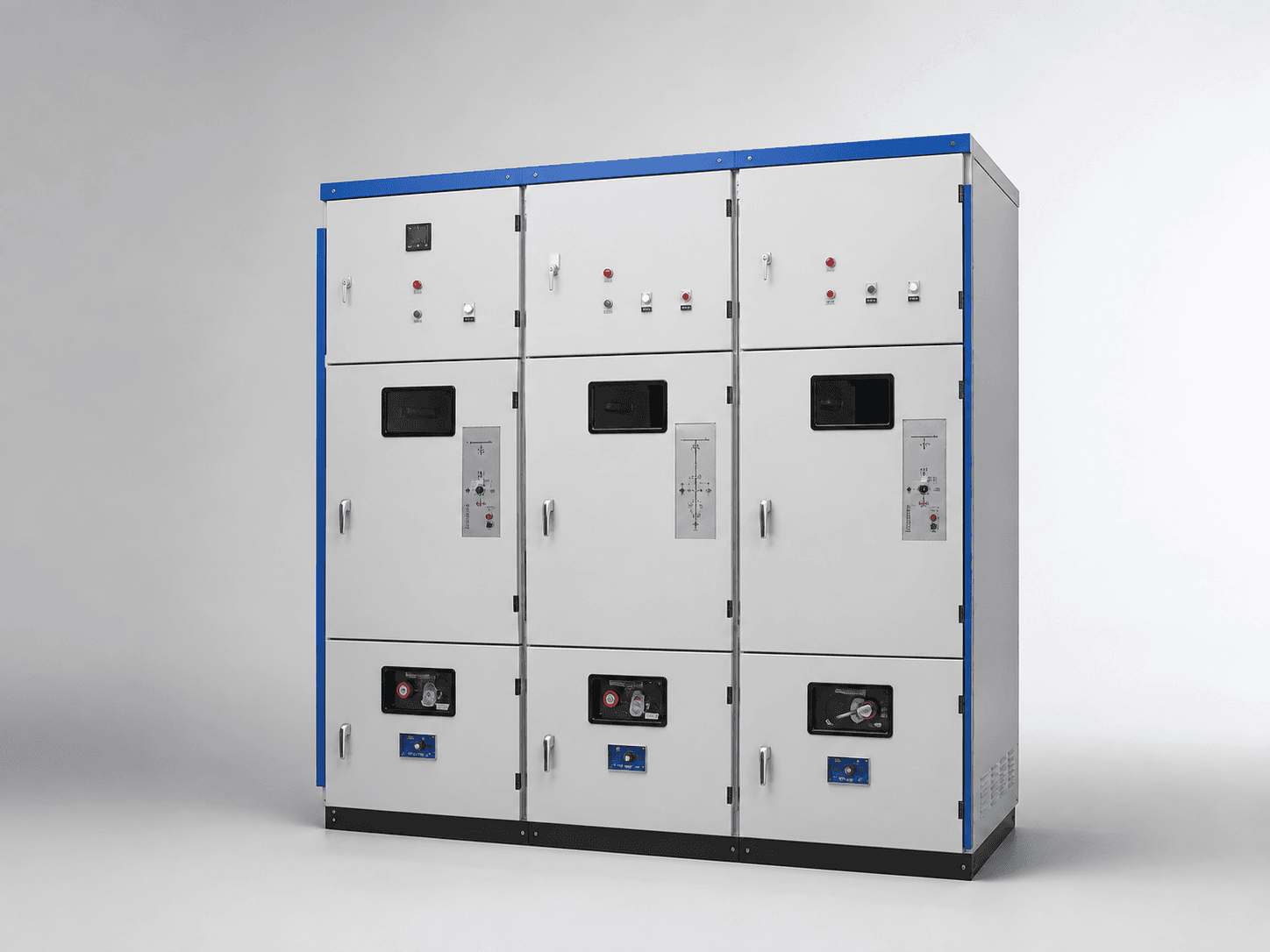

NORTH HXGN-12 box-type fixed AC metal-enclosed switchgear

Related Products

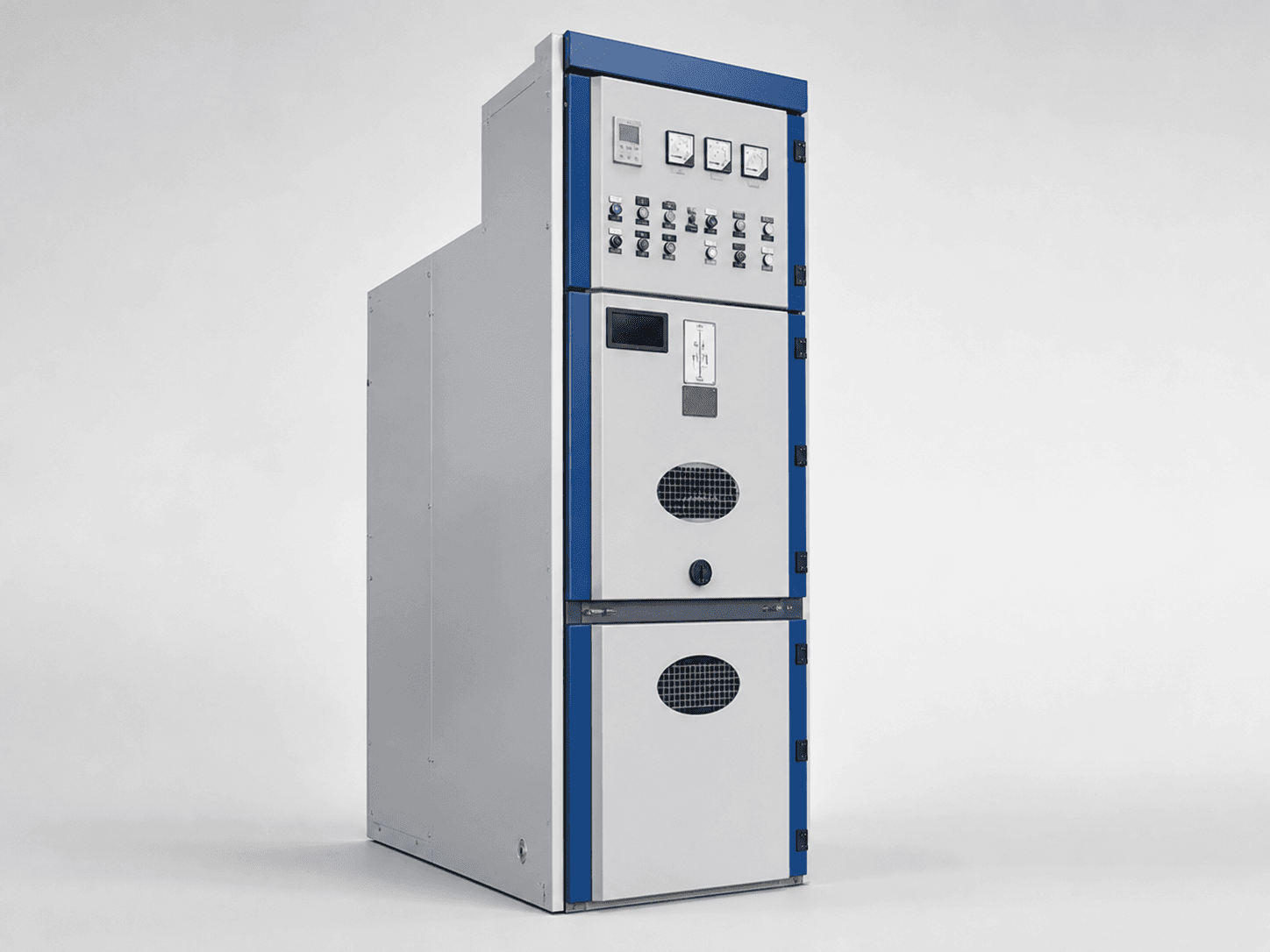

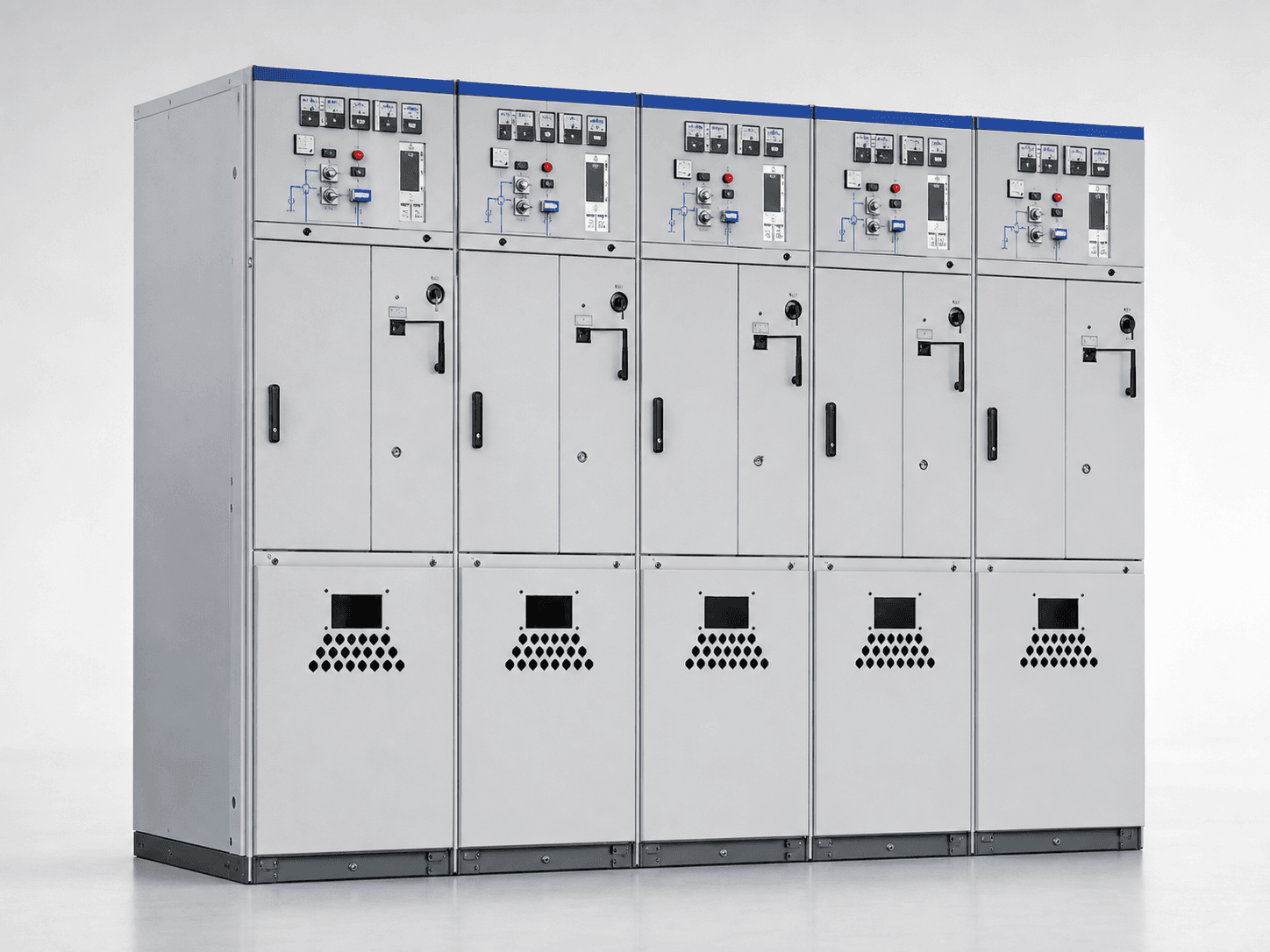

NORTH KYN28A-12 armored withdrawable AC metal-enclosed switchgearKYN28A-12 Armored Withdrawable AC Metal-enclosed SwitchgearKYN28A-12 Armored Withdrawable AC Metal-enclosed SwitchgearArmored withdrawable switchgear for 7.2–12 kV distribution networksView detailsNORTH XGN74-12 SF6 gas-insulated compact switchgearXGN74-12 SF6 Gas-insulated Compact SwitchgearXGN74-12 SF6 Gas-insulated Compact SwitchgearFully insulated, fully enclosed compact equipment for 10 kV ring and terminal supplyView detailsNORTH ZBW-12 prefabricated substationZBW-12 Prefabricated SubstationZBW-12 Prefabricated SubstationOutdoor prefabricated substation integrating high-voltage, transformer, and low-voltage unitsView details
