FY3000 (GCS) Low-voltage switchgear
FY3000 (GCS) low-voltage withdrawable switchgear is suitable for power distribution systems in power plants, petroleum, chemical, metallurgical, textile, and high-rise building industries.
Keyword:
Classification:
High and Low Voltage Equipment
Overview
The FY3000 (GCS) low-voltage withdrawable switchgear is suitable for power distribution systems in power plants, petroleum, chemical, metallurgical, textile, and high-rise building industries. In large power plants and petrochemical systems with a high degree of automation and computer interface requirements, it serves as a three-phase AC frequency of 50 (60Hz), rated operating voltage of 380V (400V) power plant, motor control, and reactive power compensation low-voltage complete power distribution device.
Usage Environment Conditions
• Ambient temperature: +40℃~-15℃
• Altitude: 2000m.
• Ambient humidity: Daily average relative humidity 95%, monthly average relative humidity 90%.
• The inclination of the vertical installation surface does not exceed 5%, and the entire group of cabinets is relatively flat.
• No violent vibration and impact, and places where there is insufficient corrosion to damage electrical components.
Main Structural Features
• The main frame adopts BMF profiles or "C" profiles, which are cold-bent from cold-rolled steel plates or aluminum-zinc coated steel plates, with high strength and easy modular installation.
• Drawer types are divided into four size series: 1/2 unit, 1 unit, 2 units, and 3 units, with a circuit rated current of 630A or less.
• Flexible assembly, compact structure, strong versatility, good safety performance, and convenient assembly.
• Increasing the heat capacity of the transfer piece significantly reduces the temperature rise caused by the transfer piece to the plug-in, cable head, and partition plate.
• Reliable between functional units and compartments; the failure of one unit will not affect the normal operation of other units, limiting the failure to the minimum range.
• The horizontal placement of the busbars ensures good dynamic and thermal stability of the device.
• The connection between the device and external cables is completed in the cable compartment, and the cables can enter and exit from the top and bottom. The zero-sequence current transformer is located in the cable compartment for convenient installation and maintenance.
• The drawer unit has a sufficient number of secondary plug-ins (32 pairs for 1 unit and above, 20 pairs for 1/2 unit), which can meet the requirements of the number of connection points for computer interfaces and remote control circuits.
Ordering Information
Please provide the following information when ordering:
• Main circuit scheme number, main wiring diagram, arrangement diagram, and layout plan.
• Auxiliary circuit electrical schematic diagram and terminal arrangement diagram.
• Symbols, specifications, and quantities of electrical components inside the switchgear.
Contact Us
Contact E-mail
Contact Address
No. 538 Xingfu Road, Industrial East District, Xindu District, Chengdu, Sichuan Province
About North
The company is an integrated enterprise engaged in R&D, design, manufacturing, and sales of power transmission and distribution complete equipment, forming a diversified development pattern.
Its product range includes: high and low voltage switchgear, distribution panels, prefabricated substations, bus duct, transformers, electrical components, intelligent power backend monitoring systems, energy management systems, and intelligent fire protection cloud systems.
These products are widely used in industrial and mining enterprises, municipal construction, hospitals, colleges, office buildings, commercial complexes, substations, petrochemical industries, rail transit, and machinery sectors.
The company occupies an area of
Technical Center Personnel
Product Series
Partners
Hot Products
Cases
Qingyang Headquarters Economic Base Phase III Project
Suining Financial and Commercial Center
Yantai High-tech Zone Cold Chain Logistics Project
Rizhao Oriental Colorful City Project
Public Health Service Center Project of Mechanical and Electrical Branch

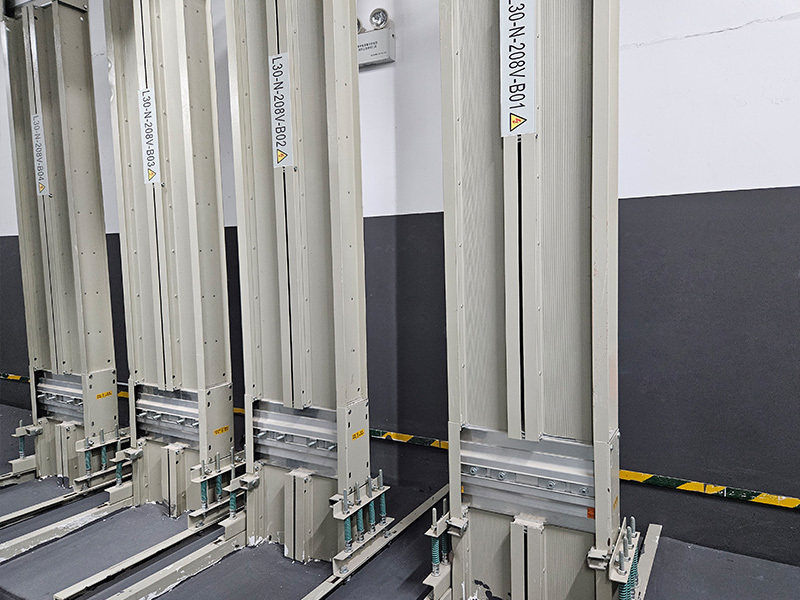

Production and installation of low-voltage intensive bus duct products for Chengdu Huaikou South Station power distribution project
Interested in our product. Please leave a message
Enter your contact information and we will contact you as soon as possible.

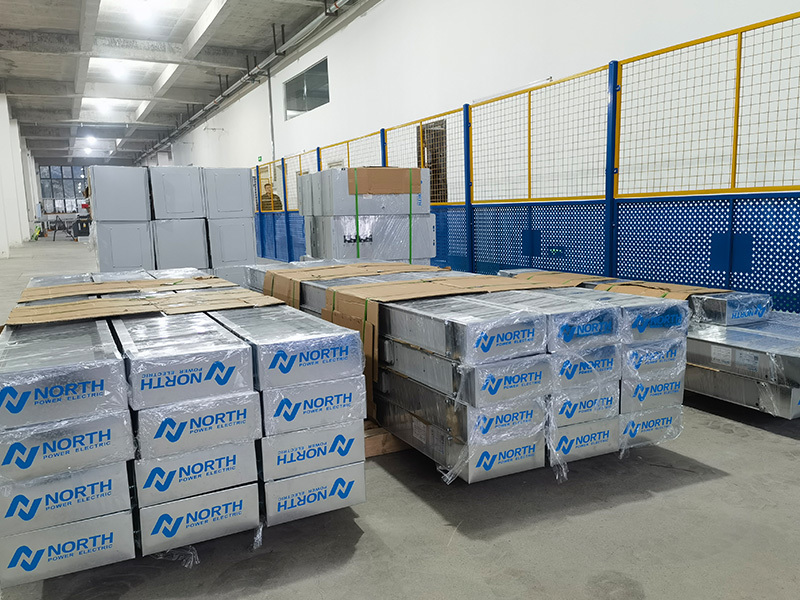

Workshop
